Create the Request Form

Purpose

ServiceNow offers multiple ways to create a user experience for submitting a form. In this exercise, we will learn one quick way to get users off paper forms and emails.

1. Go to App Home tab, "App home Telework"

2. On the application homepage, locate the Experience section and click the ⨁ Add icon

   This takes us to a selection where we can identify the type of experience we wish to create.

3. Select the Record Producer option.



   info

   A record producer is a specific type of catalog item that allows end users to create task-based records from the service catalog.

4. This launches the record producer creator.

5. Click on the Begin button



6. Set the following values (💡 double-click, copy & paste into the form)

   Field Name	Field Value
   (1) Name	Apply for Telework
   (2) Short Description	Use this form to apply for Telework

   (3) Click on the Continue button



7. Click on the Edit record producer button



8. Click on Destination , then type Tel, and select the Telework Case table



9. Click on Location , then under Catalogs, click on Browse.



10. Click on Service Catalog , then click on the right arrow to move the item over to the Selected list



11. At the bottom, Click on the Save selections button

12. Under Categories , click on Browse

13. Move Can We Help You? to the right-hand side and Click on the Save selections button

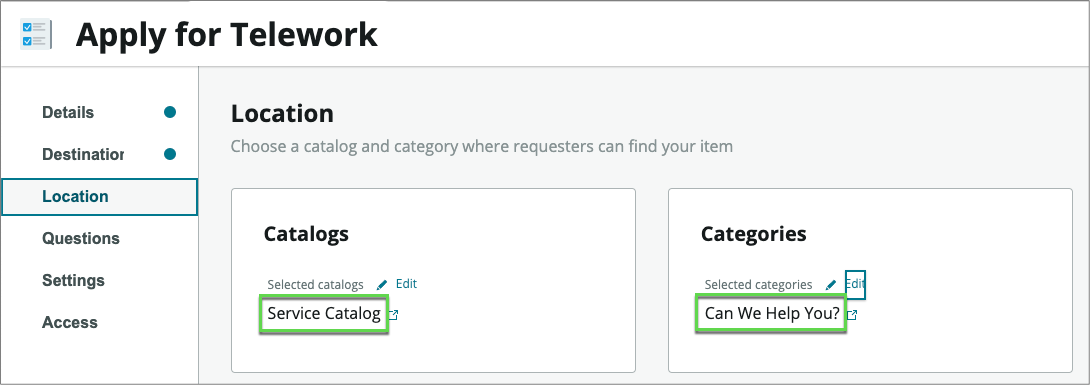

    Your screen should look like below

14. Let's add questions to the form

    info

    Unlike in a paper-based form, we don't need to ask users to fill personal information like first name, last name, …, or date of request. That information will be automatically attached to the case. This makes filling forms so much faster.

15. We want to allow users to open a case on behalf of another individual, so let's start by asking users " Who is this request for?" and " When do you need this?"

16. Click on Questions

17. Click the arrow next to Insert new questionthen click "Question set"



18. Select "Standard Employee Questions" and click Submit



    This will add two frequently asked questions on forms

19. One key information we need users to provide is the type of arrangement they are applying for.

    1. Click Insert new question

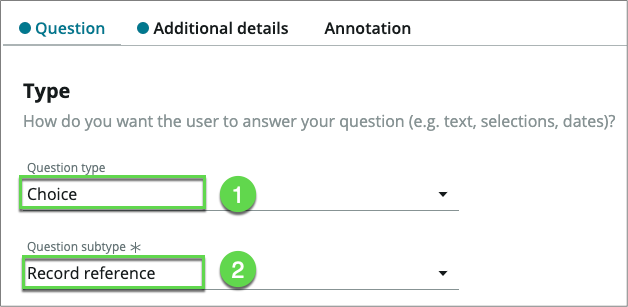

    2. For Question type, select Choice
    3. For Question subtype , select Record reference



    4. Scroll down to the Details section

    5. In the Details section, enter the following information: (💡 double-click, copy & paste into the form)

       Field Name	Field Value
       Map to a specific field	We want to store that information so let's check the box
       Table field	choose Arrangement
       Question label	What type of Telework arrangement are you applying for?
       Mandatory	Checked

       info

       Notice the Question Preview that shows what the question will look like to the user.

    6. Click on Continue to Additional details →

    7. In the Additional details section, set the Source Table to the Arrangement table we imported earlier. as options for this question.

    8. then Click on the Annotation tab



    9. Today, the team is spending a lot of time correcting and manually re-routing applications due to people confusing the different types of Telework arrangement. Let's fix that.

    10. We'll use the Annotation tab to provide users with additional instructions for the question.

    11. Check the box Show** instructions**

    12. Open the file: telework form annotation.docx

    13. Copy all the text in the file ( ⌘ Cmd or CTRL+A, CTRL+C )

    14. Paste it into the Annotation section of the Telework Form (⌘ Cmd or CTRL+V )

    15. Click on the Insert Question button



20. Back to the main form, Click on the Insert Question button



21. When users select the arrangement type Situational , we'll prompt them for the number of days per week.

    1. So, let's go ahead and in the Type section set the following values:

       Field Name	Field Value
       Question type	Text
       Question subtype	Single line



    2. Scroll down to the Details section

    3. In the Details section, enter the following information: (💡 double-click, copy & paste into the form)

       Field Name	Field Value
       Map to a specific field	Checked
       Table field	Days per week
       Question label	Number of Days per Week?

    4. Click on Additional details



    5. In the Additional details section, for the Text validation field, select Number

    6. Click on Insert Question

22. Back to the Questions page, we're going to define the dynamic behavior of this question based on the answer to the previous question.

    1. Click on the behavior icon
    2. Click on the Define new behavior icon



    3. In the Actions tab, we'll specify the behavior we need:

       Field Name	Field Value
       ① Make the question mandatory	Yes
       ② Make the question visible	Yes

       ③ Click on the Conditions tab



    4. In the Conditions tab,

       1. Set the filter to [arrangement] [is] [Situational Telework]

       2. Click on the Add behavior button



23. Back to the questions page,

    1. Click on the Save button

    2. Click on Preview



24. The Preview page allows to visualize what our form will look like in different experiences. (You can interact with the item but not submit it).

    Mobile	Portal

25. Close the Preview by clicking on the X on the top right



    info

    If you want to preview your catalog item in the Virtual Agent you will need to activate the plugins_ _ Glide Virtual Agent and Service Management Virtual Agent Topic Blocks. Additional setup beyond that is required to get NLU to perform a topic conversation via the Virtual Agent. Feel free to experiment this after completing the entire lab.

26. Let's publish the form to the Service Portal

    1. Click on Review and Submit
    2. Click on Submit

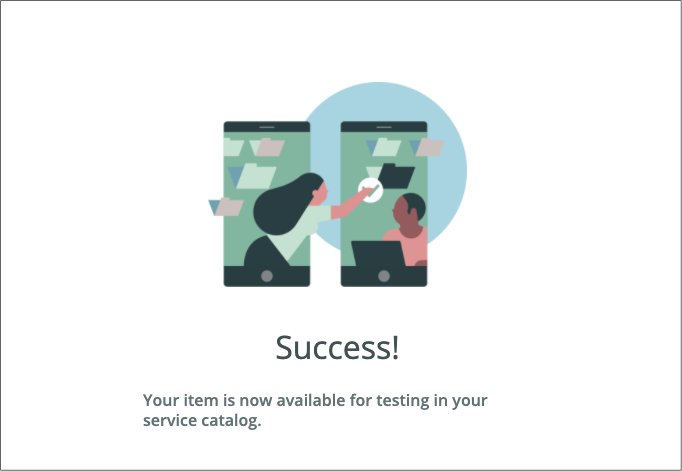

27. Congratulations. The form is published on your development instance.



28. Let's see how users can easily find it on the Service Portal

29. Go to the tab with ServiceNow Admin Home page



30. and then open the Service Portal

    1. Click All
    2. Type Portal
    3. Click on Service Portal



31. In the portal, search for "Telework"



32. The catalog item is found.

33. Click on the item to apply for Telework



34. In the Details section, enter the following information: (💡 double-click, copy & paste into the form)

    Field Name	Field Value
    (1) Who is this request for?	David Loo
    (2) When do you need this?	This week
    (3) What type of arrangement?	Situational
    (4) Number of days per week?	3

    5. Click on the Submit button



Exercise Recap

In this exercise, we learned how to use App Engine Studio (AES) to easily create customized Catalog Items that users can access in Service Portal and on mobile devices.

Our next exercise will focus on taking the building blocks created to this point and making them actionable to drive automation and process optimization
